Blasting and Painting Welding Rotator

A blasting and painting welding rotator is a motorised turning roll system used to rotate cylindrical workpieces — such as pressure vessels, storage tanks, heat exchangers, wind tower sections, and large-bore pipes — at a slow, controlled speed during surface treatment operations including shot blasting, grit blasting, spray painting, epoxy coating, and thermal spray processes.

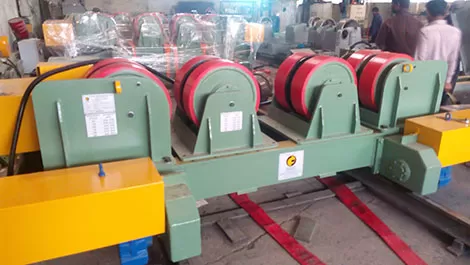

Unlike a standard welding rotator, which is designed for the heat, current, and vibration loads of arc welding processes, a blasting and painting rotator is optimised for surface-treatment environments. The key differences are in the roller material and geometry: standard welding rotators use steel or hard rubber rollers, while blasting and painting rotators use grooved polyurethane rollers. PU material is chemically resistant to paint solvents and blasting abrasives, and the groove profile keeps the job centred without the metal-on-metal contact that would damage a freshly prepared surface.

The machine also typically includes a wireless remote or a long-lead pendant so the operator can stand at the blasting gun or spray nozzle position — often several metres from the rotator controls — and adjust speed without walking back to a panel. A blast monitoring panel may also be integrated to track rotation cycles and ensure consistent coverage across all surface zones.

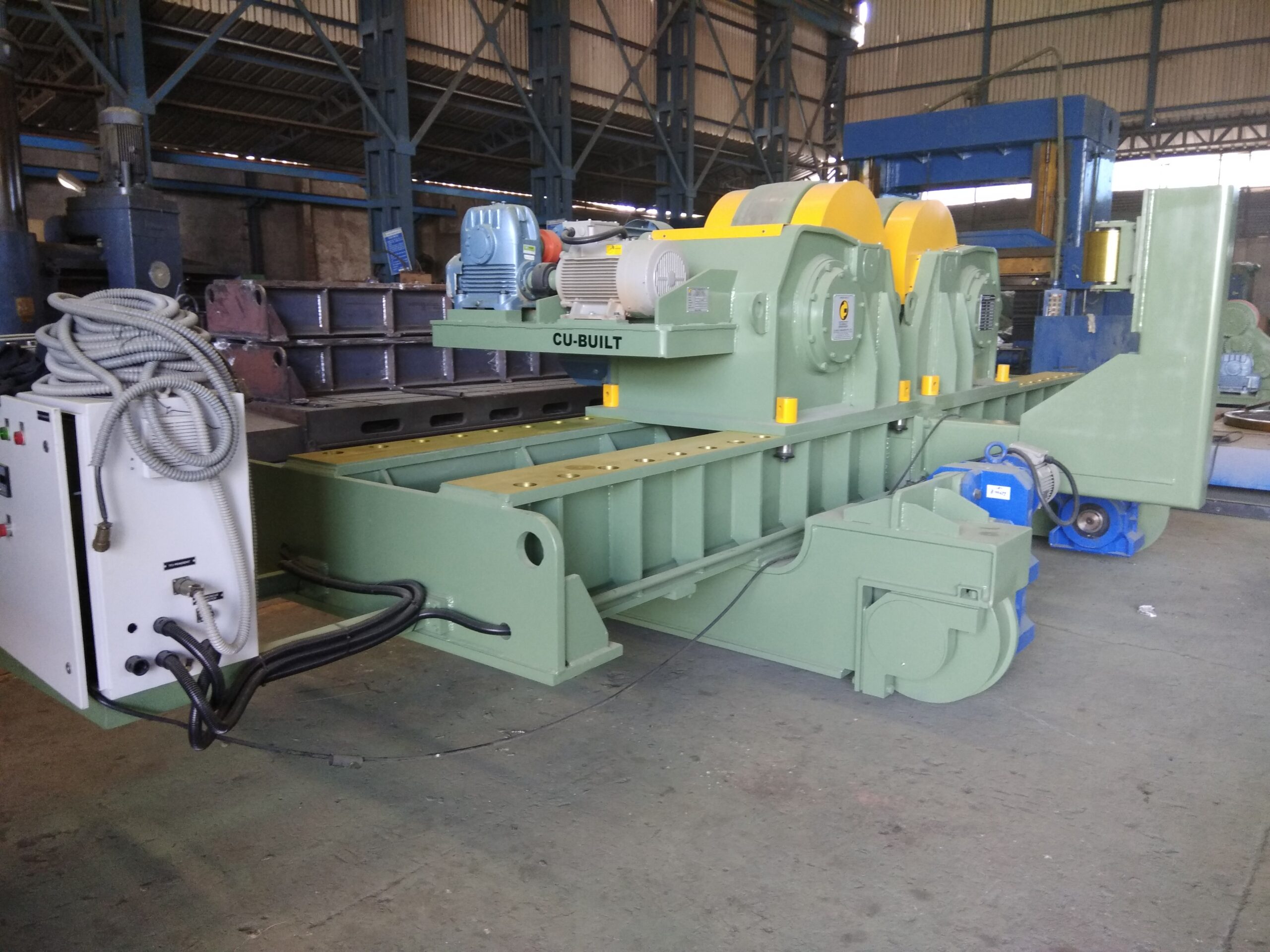

Cu-Built’s blasting and painting rotators are built with the same AC VFD drive platform used across their welding rotator range, ensuring reliable, serviceable machines with readily available spares. They are widely used in chemical processing, petrochemical, container fabrication, pipeline production, and heavy engineering sectors. For customers who also perform circumferential seam welding on the same jobs, a dual-purpose setup combining a blasting rotator with a welding column and boom is available as a turnkey package.
