Hydraulic Shell to Shell Fit Up Welding Rotators

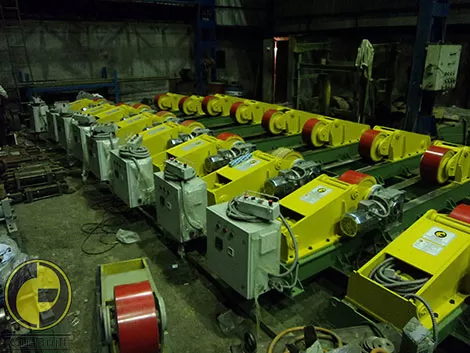

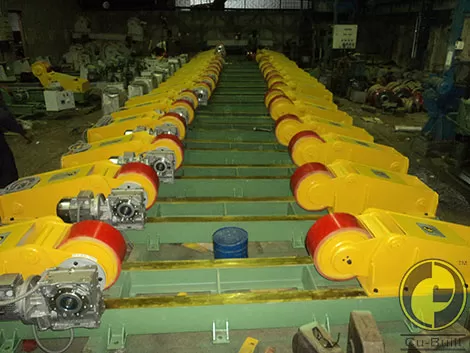

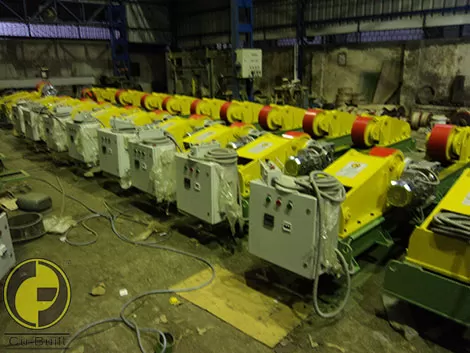

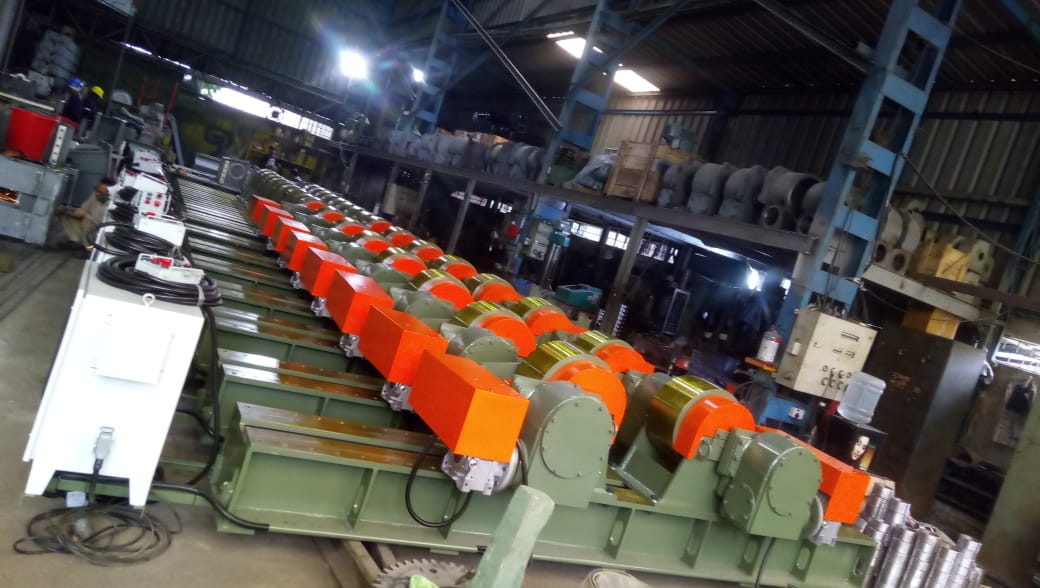

Cu-Built’s Hydraulic Shell to Shell Fit Up Welding Rotators are designed to align, support, and rotate two shell sections of the same diameter for efficient welding operations. The hydraulic positioning system ensures accurate shell alignment, reducing fit-up errors and improving weld quality. Powered rollers provide smooth and controlled rotation, making tack welding and circumferential seam welding easier and more precise.
Drive Type
AC VFD
Fit-Up System
Hydralic
Rotation
360°
Load Capacity
Custom
Product Overview
Precision Alignment and Full Circumferential Welding — Built for Shell Fabrication
Cu-Built’s Hydraulic Shell to Shell Fit Up Welding Rotators are purpose-built for one of the most demanding tasks in pressure vessel and heat exchanger fabrication: aligning two cylindrical shell sections of identical diameter, holding them in precise axial and radial register, and rotating the assembly through a full 360° for tack welding or uninterrupted circumferential seam welding.
Unlike conventional rotators that only support and rotate a complete assembly, these fit-up rotators incorporate hydraulically actuated rollers and adjustment mechanisms that actively close the gap between shell sections, correct ovality, and maintain concentricity during the entire welding cycle. The result is a square, leak-free circumferential joint with minimal rework — first time, every time.
Designed and manufactured at Cu-Built’s facility in Bhosari, Pune, each unit is engineered to match the client’s shell diameter range, wall thickness, and load capacity. Full supply, installation, testing, and commissioning is included as standard. See how these rotators compare with our Self Aligning Welding Rotators and Conventional Type Welding Rotators for other application requirements.
Key Advantages
- Hydraulic axial alignment eliminates manual hammering and clamp fit-up
- Precise concentricity control corrects radial mismatch during rotation
- Suitable for heavy pressure vessel shells — 5 T to 200 T capacity
| Technical Specifications | Table Header |
|---|---|
|
Shell Diameter Range |
500 mm to 4000 mm (custom beyond)
|
|
Load Capacity |
5 T to 200 T (custom available)
|
|
Drive System |
AC Motor with AC Variable Frequency Drive (VFD)
|
|
Speed Variation |
Stepless, constant torque across full range
|
|
Rotation |
360° continuous
|
|
Fit-Up Mechanism |
Hydraulic axial thrust + radial alignment cylinders
|
|
Roller Type |
Hardened steel / polyurethane tyres (job-specific)
|
|
Roller Drive |
2-stage gear reduction — worm gearbox + spur pinion & gear
|
Engineering Excellence
Core Technology
Hydraulic Fit-Up System
Independent hydraulic cylinders on each roller station provide axial thrust and radial correction. The operator closes the two shells, zeroes out misalignment, and locks the assembly — all from the pendant station — without repositioning crane hooks or inserting temporary fit-up tooling.
AC VFD Rotation Drive
An AC motor with Variable Frequency Drive delivers stepless speed variation at constant torque from the lowest tack-weld crawl to full-speed SAW rotation. Consistent surface speed at the joint means even heat input and uniform weld deposit throughout the circumference.
2-Stage Gear Reduction
A double-reduction worm gearbox paired with a spur pinion and spur gear stage transmits high torque to the drive rollers with minimal backlash. The arrangement is self-locking under load — the assembly cannot rotate under its own weight if drive power is cut, adding a critical safety layer.
Knowledge Base
What Is a Hydraulic Shell to Shell Fit Up Welding Rotator?
A hydraulic shell to shell fit up welding rotator is a specialised piece of welding automation equipment used to join two cylindrical shell sections of the same diameter along their circumferential seam. It simultaneously performs three functions: aligning the two shell ends axially and radially, clamping them together under controlled hydraulic pressure, and rotating the combined assembly at a precise, adjustable speed so the weld torch or electrode remains stationary while the joint passes through the weld pool.
This class of rotator is most commonly used in the fabrication of pressure vessels, storage tanks, heat exchangers, industrial boilers, wind tower sections, and large-diameter piping spools — any application where a circumferential butt weld must meet dimensional and integrity standards such as ASME Section VIII, EN 13445, or IS 2825.
The “hydraulic” designation distinguishes these machines from manual fit-up rotators. In a hydraulic unit, powered cylinders replace manual screw-adjusters and external clamps. This means faster setup, more repeatable alignment, and the ability to correct ovality or taper on the fly during welding without stopping the rotation. When paired with a submerged arc welding (SAW) column and boom or a MIG/TIG torch manipulator, a hydraulic fit-up rotator becomes the core of a fully automated circumferential welding station.
Cu-Built’s units are built around an AC Variable Frequency Drive for smooth rotation, hydraulic power packs integrated into the machine frame, and pendant controls that allow the operator to manage both alignment and rotation speed from a single station at the welding point. For broader welding automation context, explore our full range of welding rotators and welding column and boom systems.
