Self Aligning Type Welding Rotator

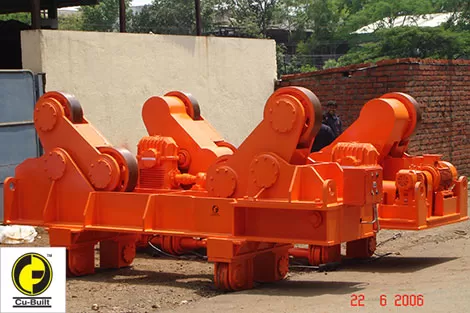

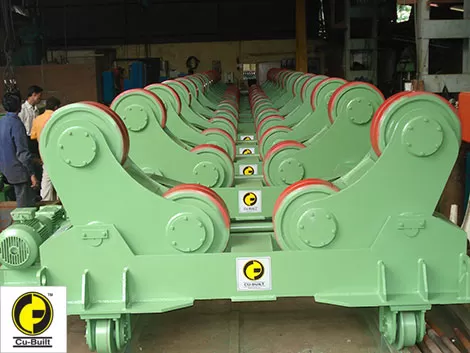

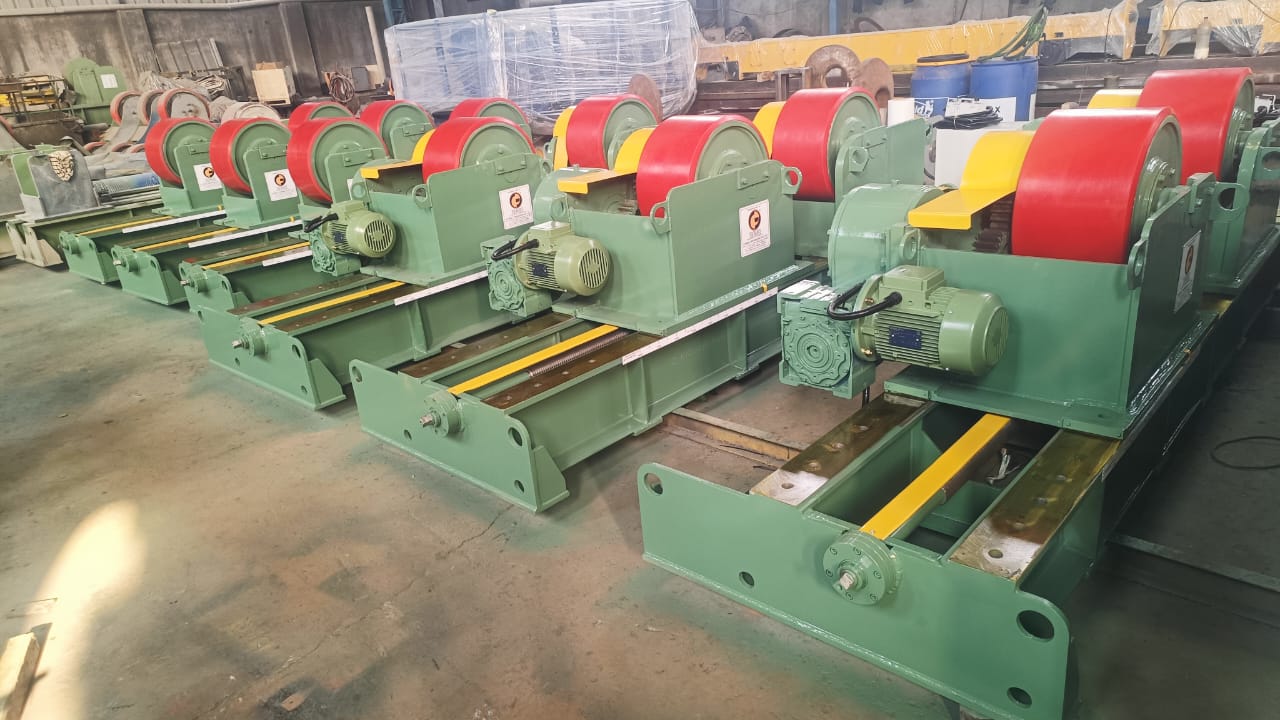

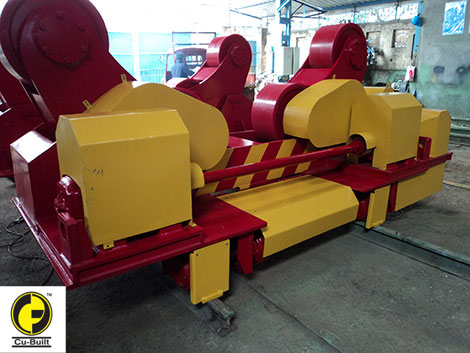

Cubuilt Engineers’ Self Aligning Type Welding Rotator are designed to automatically adjust to varying job diameters within a specified range, making them ideal for high-production environments where efficiency and precision are critical. These rotators reduce setup time and ensure uniform rotation of cylindrical workpieces, enhancing welding quality.
Automatic Roller Adjustment
The roller housings of self-aligning rotators are hinged to the base frame and automatically open or adjust when a larger diameter workpiece is introduced. This feature allows the rotator to accommodate a range of diameters without manual intervention, saving time and reducing operator effort.
Salient Features
- Both the rollers automatically get adjusted for all job diameters.
- Accepts complete range of job diameters in one setting.
- Center axis of job remain stable for all job diameters.
- Wide range of Job diameters and Load capacities.
Drive Type
AC VFD
Roller Contact
4-Point
Rotation
360°
Gear Stages
2+1
Product Overview
Zero-Setup Diameter Adjustment — One Rotator for Your Full Range of Cylindrical Jobs
Cu-Built’s Self Aligning Type Welding Rotators are built for high-production environments where vessel diameters vary job to job. The roller housings are hinged to the base frame and automatically open or close under the weight of the incoming job — no manual adjustment, no tools, no downtime. The job’s centreline stays stable at every diameter.
Each system pairs a motorised Drive Unit with a passive Idler Unit, providing four roller contact points that distribute load evenly around the circumference — critical for thin-walled large-diameter shells that would deform on a two-roller conventional rotator. The AC VFD drive delivers stepless speed variation at constant torque, with a 2+1 stage gear reduction for reliable high-torque starting across the full diameter range.
For fixed-diameter pipe work, see our Pipe Welding Rotators, or for heavy shell fit-up and joint welding, the Hydraulic Shell to Shell Fit Up Welding Rotators.
Key Advantages
- Hinged roller housings auto-adjust to any job diameter in the range — zero manual setup between jobs
- Job centreline stays stable for all diameters — no re-alignment of torch or column-and-boom needed
- Four-point roller contact distributes load evenly — ideal for thin-walled large-diameter shells prone to deformation
| Technical Specifications | Table Header |
|---|---|
|
Primary Application |
Circumferential seam welding of pressure vessels, heat exchangers, storage tanks, and large-diameter cylindrical shells
|
|
Diameter Adjustment |
Automatic — hinged roller housings self-align to job diameter on load
|
|
Job Diameter Range |
Wide range accommodated in a single setting (customised per order)
|
|
Load Capacity |
5 T to 200 T (custom available)
|
|
Roller Contact Points |
4 — two per unit (Drive + Idler)
|
|
Drive System |
AC Motor with AC Variable Frequency Drive (VFD)
|
|
Speed Variation |
Stepless, constant torque across full diameter and load range
|
|
Rotation |
360° continuous
|
Engineering Excellence
Core Technology
Hinged Self-Aligning Roller System
The roller housings are hinged to the base frame on a pivot axis that is geometrically constrained so that when both rollers open under load, the contact point midpoint — and therefore the job's centreline — stays at a fixed height above the frame. This is the key engineering insight: automatic diameter accommodation without centreline drop. The result is that a welding torch or column-and-boom set up for one job diameter requires no height adjustment for the next, even if the diameter changes by several hundred millimetres.
Four-Point Contact Load Distribution
By providing two contact points per unit rather than one, the self-aligning rotator spreads the job weight over four arcs of contact instead of two. For a thin-walled 2000 mm diameter vessel, this difference is significant: a two-roller rotator concentrates half the job weight on a small contact patch, risking ovality or denting. The four-roller arrangement halves that load at each contact point and wraps the contact arc further around the shell, keeping the vessel round under its own weight throughout the weld cycle.
AC VFD + 2+1 Gear Reduction Drive
An AC motor with Variable Frequency Drive provides stepless speed variation at constant torque from the slowest tack-weld crawl to full SAW production speed. The 2+1 stage gear reduction — double-reduction worm gearbox plus spur pinion and spur gear — multiplies torque to the level needed to start a fully-loaded large-diameter vessel from rest. The worm stage is self-locking, preventing the job from rotating under gravity if drive power is interrupted, adding a passive safety function without any additional braking hardware.
Knowledge Base
What Is a Self Aligning Type Welding Rotator?
A self aligning type welding rotator is a motorised turning roll system in which the roller housings are mounted on hinged arms that automatically open or close to match the diameter of the cylindrical workpiece placed on them. This distinguishes the self-aligning rotator from a conventional rotator, whose rollers are fixed at a set span and must be manually adjusted with a spanner or lead screw whenever the job diameter changes.
The self-aligning mechanism works because the hinge geometry is designed so that both rollers move symmetrically about the job centreline as they open. When a large-diameter vessel is lowered onto the rollers, the rollers spread apart by equal amounts on either side, keeping the job’s centreline at the same height as it would be for a smaller-diameter job. This constant centreline height is the feature that makes self-aligning rotators so productive in mixed-diameter shops: the welding column and boom, the flux backing, and the welding torch are all set up once and remain valid for every job in the diameter range — no re-calibration, no downtime.
The four-point contact configuration — two rollers per unit, Drive and Idler — is particularly valuable for large-diameter thin-walled shells used in the chemical, petrochemical, and pressure vessel industries. These shells can deform under their own weight if supported at only two points; the four contact points of a self-aligning rotator prevent this by distributing the load more evenly and wrapping the support arc further around the circumference.
Cu-Built’s self-aligning rotators are available across a wide load and diameter range and are compatible with all standard arc welding processes including MIG, TIG, SAW, and FCAW. They are widely used in pressure vessel fabrication, heat exchanger manufacturing, storage tank production, and wind tower section welding. For a complete circumferential welding cell, pair with a welding column and boom. For the full rotator range, visit the welding rotator product page.
