What is a Heavy Duty Column and Boom?

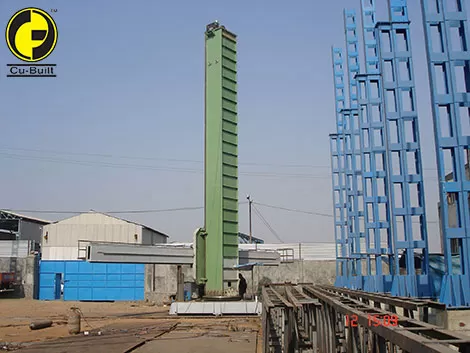

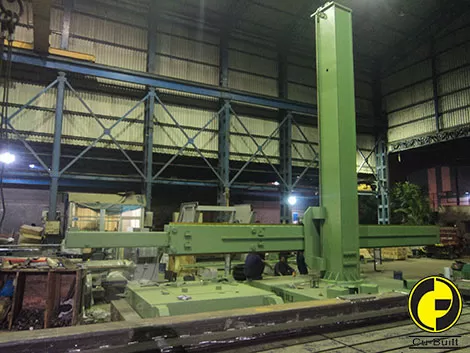

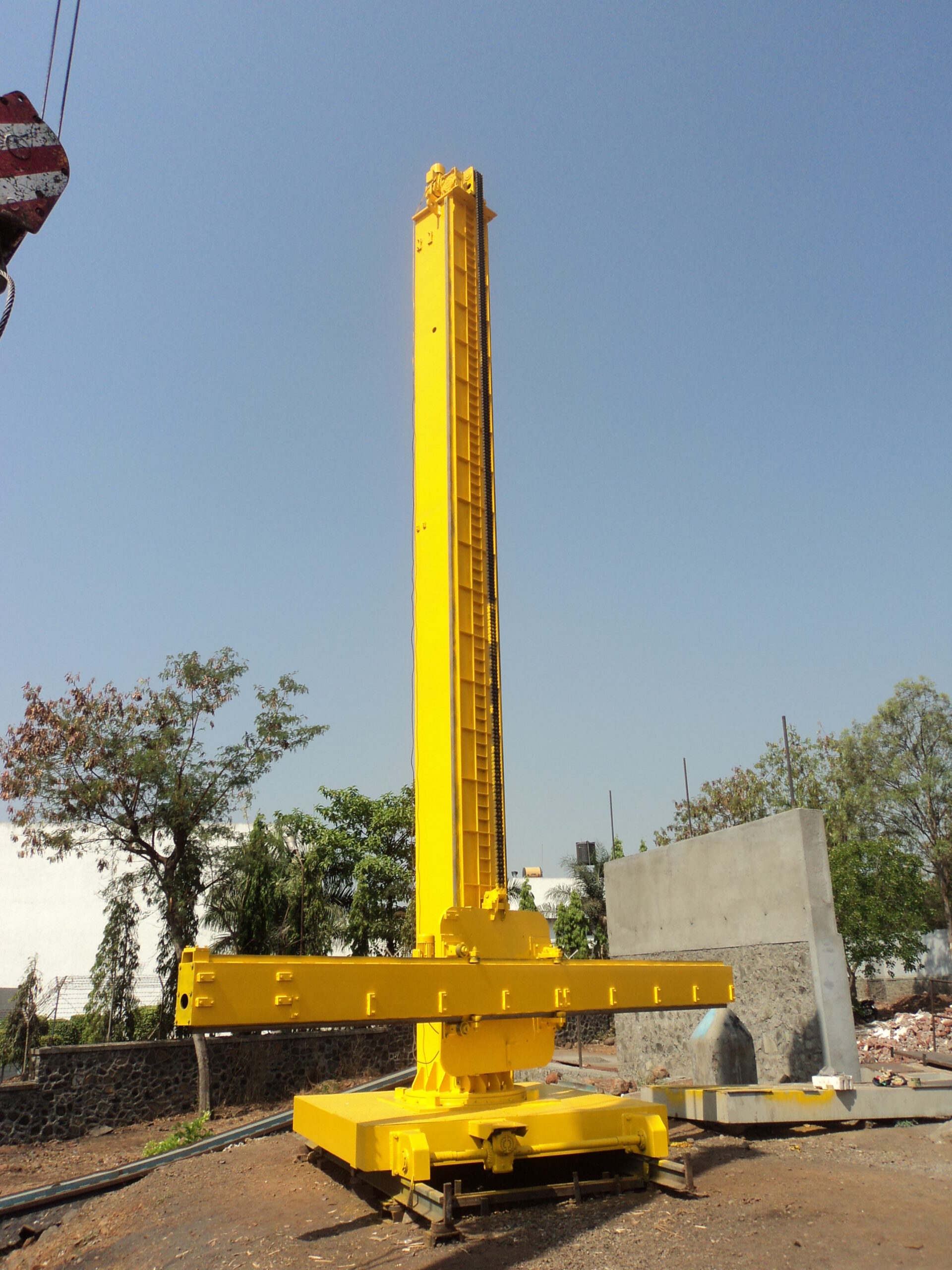

Heavy Duty Column and Boom – (Motorized Trolley / Manual Trolley/Fixed Based) is also called as Welding Head Manipulator. The welding head is mounted at one end of the Boom. The wire spool can be mounted at the front or at the rear end of the Boom. In Extra Light Duty and Light Duty Models (i.e. Up to 3 meters X 3 meters), the vertical movement is through Lead Screw, and for Medium & Heavy Duty Boom, the vertical movement is through Rack & Pinion with counterweight arrangement.
Construction & Design
The Column and Boom is designed with precision and stability in mind. The welding head is mounted at one end of the boom to ensure accurate and consistent operation, while the wire spool can be conveniently mounted at either the front or rear of the boom as per requirement. In light duty models (up to 3m x 3m), vertical movement is controlled by a lead screw, whereas medium and heavy-duty models use a robust rack and pinion system with a counterweight arrangement for smooth and reliable performance.
Key Features
- Heavy-duty construction for maximum stability.
- Smooth vertical and horizontal travel with rack & pinion drive.
- In-built anti-fall safety system for operator and equipment protection.
- Wide range of sizes and stroke combinations for versatile applications.
- Compatible with SAW, TIG, and MIG/MAG welding processes.
Why Choose Cubuilt Heavy Duty Column and Boom?

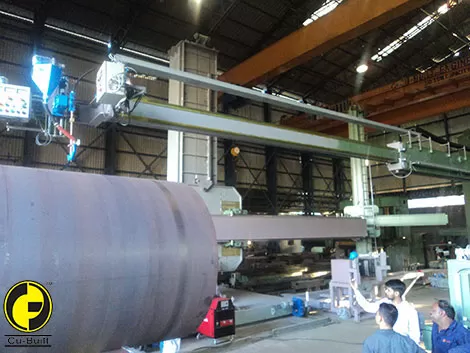

Cubuilt’s Column and Boom systems are engineered to deliver exceptional performance, precision, and reliability for demanding welding applications in heavy fabrication industries. Designed with robust structural components and advanced motion control mechanisms, these systems provide smooth vertical and horizontal movement, ensuring accurate positioning of welding heads for consistent weld quality. Whether used for pressure vessels, storage tanks, wind towers, boilers, or large-diameter pipe fabrication, Cubuilt column and boom solutions help manufacturers improve productivity while maintaining high welding standards.
With decades of expertise in welding automation and material handling equipment, Cubuilt offers customized column and boom configurations tailored to specific project requirements. Customers can choose from fixed-base, motorized, or trolley-mounted designs, along with integration options for welding positioners, rotators, and automatic welding systems. Every machine is built using high-quality materials and incorporates essential safety features to ensure long-term operational reliability and operator safety.
By choosing Cubuilt, manufacturers gain access to a complete welding automation partner that provides design consultation, engineering support, installation assistance, and after-sales service. The result is a dependable, high-performance welding solution that reduces manual effort, increases production efficiency, minimizes welding defects, and helps businesses achieve faster project completion with superior weld quality.
Related Product
Questions Asked For Heavy Duty Column and Boom
What is a heavy-duty column and boom used for?
It is also called a Welding Head Manipulator. It holds the welding head at one end of the boom and positions it accurately, which gives consistent weld quality on heavy fabrication work. It is used for pressure vessels, storage tanks, wind towers, boilers, and large-diameter pipe fabrication.
What configurations are available?
It comes in Motorized Trolley, Manual Trolley, and Fixed Base versions, with a wide range of sizes and stroke combinations to suit your workshop and project.
How does the vertical movement work?
Medium and heavy-duty models use a rack and pinion drive with a counterweight arrangement. This gives smooth, reliable vertical travel under heavy loads. Horizontal travel is also driven by rack and pinion.
Which welding processes is it compatible with?
It works with SAW, TIG, and MIG/MAG welding. The wire spool can be mounted at the front or the rear of the boom, depending on your setup.
What safety features does it have?
It has an in-built anti-fall safety system that protects both the operator and the equipment.
