Conventional Type Welding Rotators

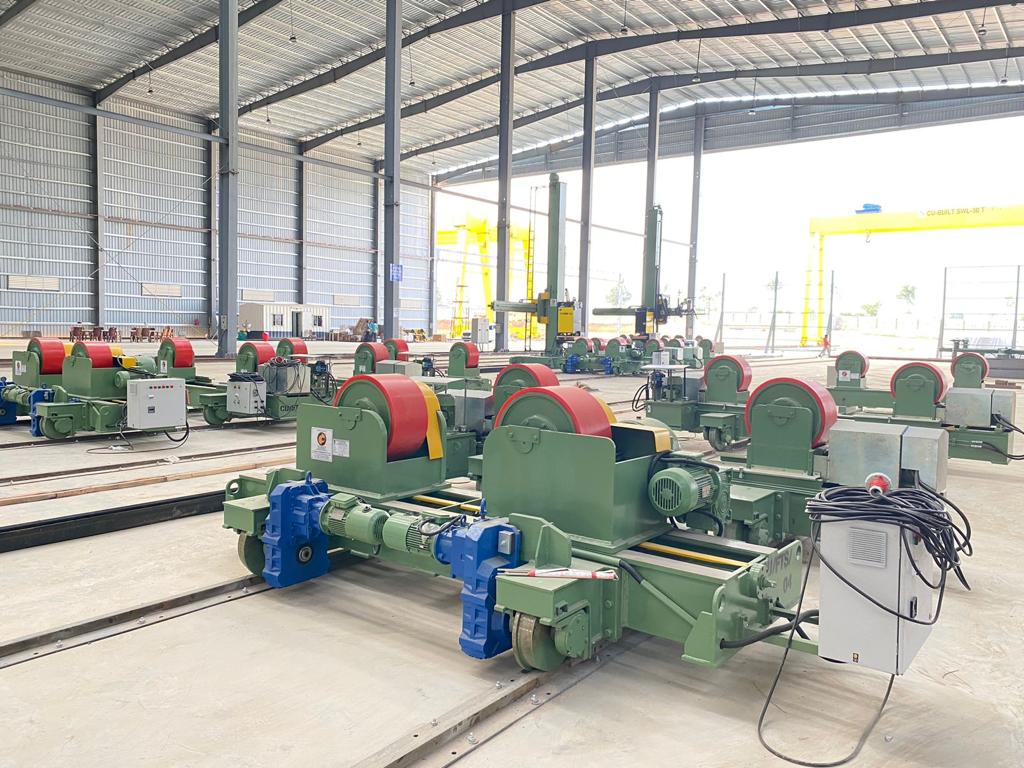

Cu-Built Conventional Type welding rotators are specially designed to rotate or support the various diameters of cylindrical jobs. The machine has two units, one is a Driving unit and another is an Idler unit. In Conventional Welding Rotators, main base frames are fabricated and stress relieved before machining. There are basically two units, the Drive and Idler – one unit each. The precisely machined (on the boring machine) Roller Brackets are bolted on the roller beds. Both the Roller Brackets have to be manually moved as per the job diameter keeping the center fixed. This model has a double-ended drive to avoid the use of a diameter-setting drive shaft. The fixing holes for the brackets on the bed are precisely factory set.
Construction & Technical Details
The base frame is constructed of plate fabrication precisely machined to maintain the proper level and alignment. Fabricated Roller housing bracket precisely machined.
Rotator Manufacturing Options
- Welding of pipes
- API pipes
- Boilers
- heat exchanger
- Pressure vessels/Tanks
- mounted vessels
- LPG bullets
Knowledge Base
What are Conventional Type Welding Rotators?
Conventional Type Welding Rotators are industrial welding support systems designed to rotate cylindrical workpieces such as pipes, tanks, pressure vessels, boilers, heat exchangers, and LPG bullets during welding, assembly, and fabrication processes. The system typically consists of a powered drive unit and an idler unit that support the workpiece on rollers and rotate it at a controlled speed, enabling welders to maintain the ideal welding position throughout the operation. Unlike self-centering rotators, conventional welding rotators require manual adjustment of the roller brackets to accommodate different job diameters. This robust and cost-effective design provides stable load handling, smooth rotation, improved weld quality, reduced manual handling, and increased productivity in fabrication workshops. Conventional Type Welding Rotators are widely used in heavy engineering industries where reliable performance, versatility, and the ability to handle a wide range of vessel and pipe diameters are essential.
Related Product
Frequently Asked Questions
What is a conventional welding rotator used for?
It rotates or supports cylindrical jobs such as pipes, API pipes, boilers, heat exchangers, pressure vessels, tanks, mounted vessels, and LPG bullets during welding, assembly, and fabrication. This lets the welder keep the joint in the ideal position throughout the weld.
What are the Drive Unit and the Idler Unit?
They are built for cylindrical workpieces, including pipes, API pipes, boilers, heat exchangers, pressure vessels, tanks and LPG bullets. The powered drive unit and idler unit support the job on rollers and rotate it at a controlled speed, so the welder can stay in the ideal welding position.
Can the rotator be customized for my job size and load?
Yes. We configure the drive unit, idler unit and roller brackets to suit your job diameters and weights. Share your requirements with our team and we’ll recommend the right setup and send a quote.
Do you provide installation and after-sales support?
Yes. Cu-Built provides supply, installation, testing and commissioning from our Bhosari, Pune facility, along with maintenance support after installation. If you only need a rotator for a short project, you can also look at our welding rotators for hire.
