What is a Head Stock and Tail Stock Setup?

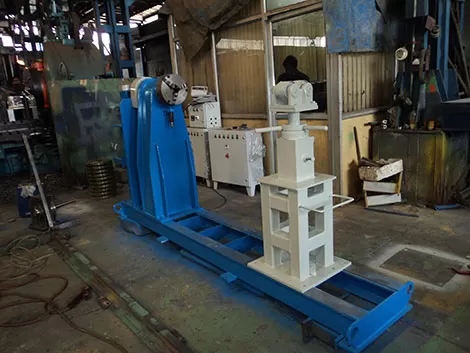

Cu-Built Head Stock and Tail Stock Setup (Flange Welding Set Up) is specially designed for position welding of various jobs. The machine has two units, one is Head Stock and the other is Tail Stock.

Head Stock and Tail Stock Setup is mainly used for holding the Jobs from both ends and rotating it or Indexing it for getting any position. It can be used for Pipe to Flange, Welding, Pipe to Bush Welding, and Pipe to Pipe Welding applications as well. Head Stock and Tail Stock Setup have been specially designed to meet modern welding requirements and incorporate features essential for efficient and economic welding production The job is continuously rotated at a pre-selected speed so that the quantity and quality weld can be made on the circumference.

Head Stock

This is the powered unit that rotates the job. This unit can be fixed on the base. The prime mover is an A. C. Motor or Servo Motor and there in the speed reduction is obtained by Worm Gearbox and Spur Gear – Pinion arrangement.

Tail Stock

This is the non-powered unit that supports the other end of the pipe. This unit can be moved to & fro to suit the Job length. The movement is motorized through a Leadscrew & Nut arrangement. This unit is placed on a machined base so that it slides for its to & fro movements. Job holding Job chucks with Manual Jaws, Pneumatic Jaws or Hydraulic Clamping Jaws can be provided optionally. The mainframes of both units are constructed with structural & plate fabrication precisely machined to maintain the proper level and alignment.

2 Axis and 3 Axis Manipulators

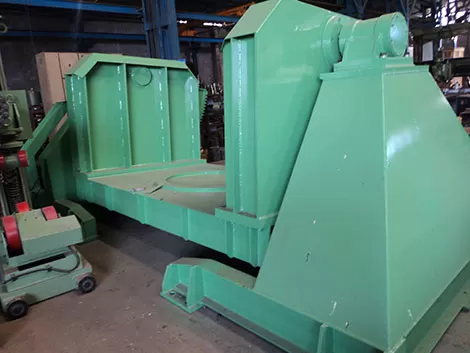

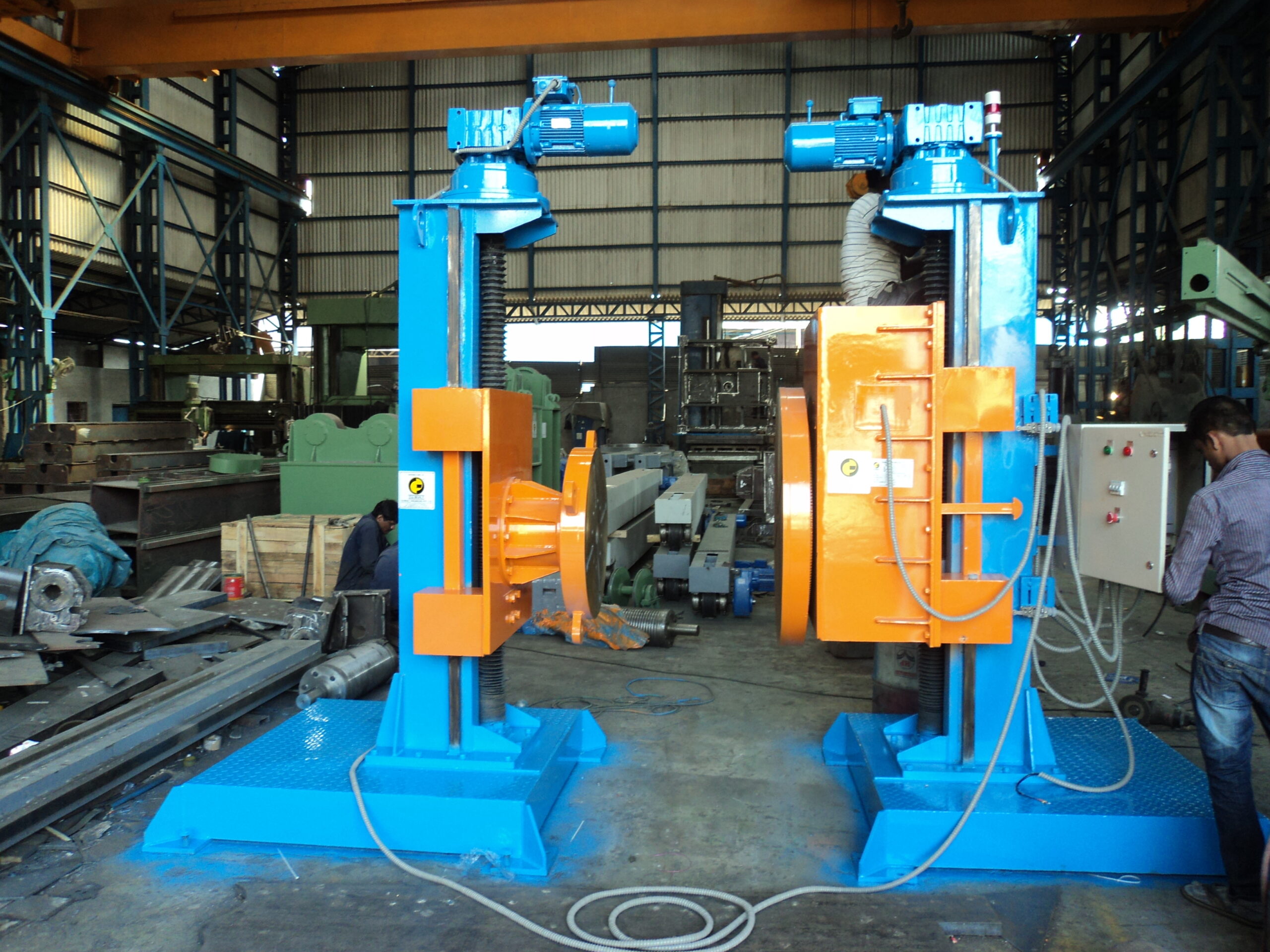

2 Axis or 3 Axis (Head Stock & Tail Stock Type, L- Type, Hydraulic Type) manipulators are specially designed for positioned welding of various jobs. The vertical movement is through lead screw & nut, or Hydraulic. In lift drive, the power is obtained through an A. C. Motor (Prime mover). Further, the speed reduction occurs in a single-stage Gearbox. The Rotary table (Face Plate) has T-slots (4 Nos.) for clamping the Job holding fixture. Limit switches have been provided at the lower end & upper extreme positions.

Why Choose Cubuilt Head Stock and Tail Stock Setup?

Cubuilt Head Stock and Tail Stock systems are engineered to provide accurate positioning, smooth rotation, and reliable support for long and complex workpieces. Built with robust fabricated structures and precision-machined components, the system maintains proper alignment during welding, helping manufacturers achieve consistent weld quality and improved production efficiency.

With extensive experience in fabrication and welding solutions, Cubuilt offers customized configurations based on workpiece size, load capacity, and process requirements. The systems can be equipped with manual, pneumatic, or hydraulic clamping arrangements and tailored to suit a variety of industrial applications. From design and manufacturing to installation and support, Cubuilt delivers dependable solutions that help reduce manual handling, improve workplace safety, and enhance overall fabrication performance.
