Pipe Welding Rotators
Cubuilt’s Pipe Welding Rotators have been specially designed to meet the modern requirements and incorporate features essential for efficient and economic welding. The basic function of this Pipe rotator is to turn the job continuously at a preset speed so that welding can be made on the circumference
Drive Unit

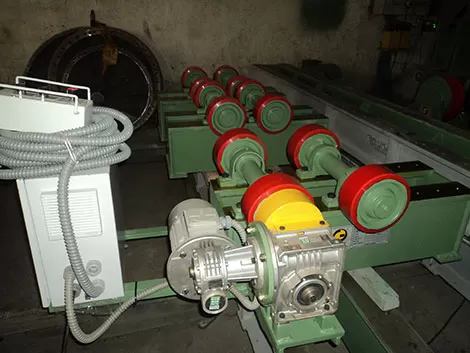

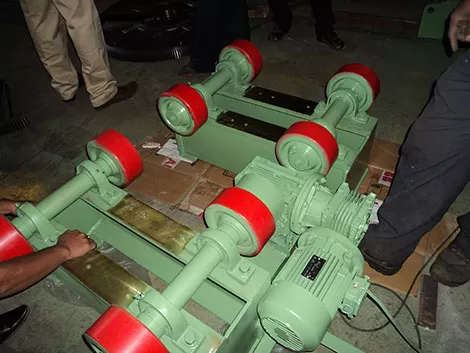

The Drive Unit features plummer blocks with polyurethane rollers mounted on a robust mainframe. These rollers provide smooth rotation and grip for the pipe without damaging its surface. The rotator includes a fixed diameter setting tailored to the size of the workpiece, ensuring secure handling during welding. This design makes the Drive Unit highly efficient for pipe welding of various diameters and weights.
Idler Unit

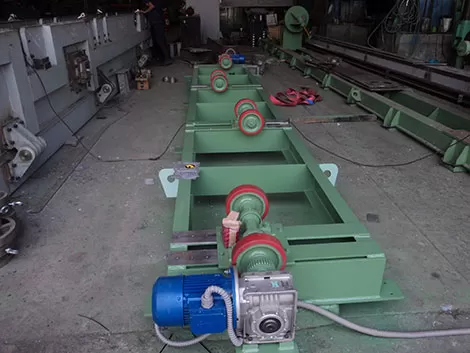

The Idler Unit is structurally similar to the Drive Unit but does not include the drive mechanism or gears. It provides stable support for the opposite end of the pipe. Care must be taken while loading the workpiece to avoid impacting the brackets or rollers.
Construction and Technical Details
Cubuilt Pipe Welding Rotators are built to withstand harsh fabrication shop conditions, heavy loads, and frequent use. The frame is fabricated from high-strength steel plates, while all moving parts are precision-machined to ensure proper alignment and smooth operation. With simple instructions and regular maintenance, these rotators provide years of trouble-free service.
Drive Type
AC VFD
Roller Type
PU Rollers
Rotation
360°
Gear Stages
2+1
Product Overview
Compact, High-Precision Rotators Built for Pipe Spool and Small-Bore Cylindrical Welding
Cu-Built’s Pipe Welding Rotators are purpose-built for continuous circumferential welding on pipes, spools, and small-bore cylinders — rotating the pipe at a precise, pre-set speed so the welding torch stays stationary while the joint passes through the weld pool at a constant rate.
The Drive Unit houses plummer-block-mounted polyurethane rollers that grip the pipe securely without scratching or marking the outer surface. The Idler Unit supports the opposite pipe end and rotates freely — no motor or gearbox required. Both units are built from high-strength fabricated steel plate with precision-machined components for reliable alignment under repeated heavy use.
Each unit ships with a fixed roller diameter setting matched to your pipe range. For broader diameter coverage, see our Self Aligning Welding Rotators, or for heavier vessel work, the Conventional Type Welding Rotators.
Key Advantages
- PU rollers cradle and grip the pipe without scratching, denting, or marking the outer surface
- Continuous 360° rotation keeps the weld joint in the flat downhand position for superior bead quality
- AC VFD drive delivers stepless speed control — match rotation precisely to weld deposition rate for any pipe diameter
| Technical Specifications | Table Header |
|---|---|
|
Primary Application |
Circumferential seam welding of pipes, spools, and small-bore cylinders
|
|
Pipe Diameter Range |
AC Variable Frequency Drive (VFD) |
|
Load Capacity |
Customised to pipe weight and length
|
|
Drive System |
AC Motor with AC Variable Frequency Drive (VFD)
|
|
Speed Variation |
Stepless, constant torque across full range
|
|
Rotation |
360° continuous
|
|
Roller Type |
Polyurethane (PU) rollers on plummer-block mounts
|
|
Gear Stages |
2+1 — double-reduction worm gearbox + spur pinion & gear
|
Engineering Excellence
Core Technology
Plummer-Block PU Roller System
Each Drive Unit roller is mounted in a grease-lubricated plummer block — a self-contained bearing housing that keeps the roller shaft precisely aligned under load and allows easy replacement in the field. The polyurethane tyre over the steel roller core provides the grip needed to turn the pipe without slip, while the soft compound absorbs minor surface irregularities and protects pipe coatings or prepared weld surfaces from damage.
AC VFD Constant-Torque Drive
An AC motor paired with a Variable Frequency Drive delivers stepless speed variation at constant torque from very low crawl speeds up to faster rotation for thin-wall pipes. This constant-torque characteristic means the rotator does not lose grip or stall when the pipe is eccentric or unevenly loaded — a common issue with older rheostatic or single-speed drives. The VFD also provides smooth ramp-up and ramp-down, eliminating the jerk that can disturb a tack-welded assembly at start and stop.
2+1 Stage Gear Reduction
A double-reduction worm gearbox followed by a spur pinion and spur gear stage multiplies motor torque to the level needed to rotate a loaded pipe spool from rest. The worm stage is inherently self-locking — the assembly cannot rotate under gravity if drive power is lost. The spur stage adds the final reduction in a compact, low-noise arrangement. Together, the two stages give the rotator a wide speed range and high starting torque in a small, robust gearbox package suited to fabrication shop environments.
Knowledge Base
What Is a Pipe Welding Rotator?
A pipe welding rotator is a motorised turning roll system designed to rotate pipes, pipe spools, and small-bore cylindrical assemblies at a controlled, pre-set speed during circumferential arc welding. The machine supports the pipe on pairs of motor-driven and free-rolling rollers, rotating the assembly continuously so the welder or automated welding torch can deposit a full circumferential weld bead in the flat (downhand) position without stopping or repositioning.
Welding in the flat position — with the joint at the top of the rotating pipe, directly beneath the torch — is the most productive and highest-quality position for all common arc processes including MIG, TIG, SAW, and FCAW. Gravity assists the weld pool, bead profiles are more consistent, spatter is reduced, and deposition rates are higher than positional welding. The pipe rotator makes this possible by keeping the joint at the top throughout the full 360° weld cycle, while the torch stays fixed on a stand or manipulator arm.
Pipe rotators differ from larger vessel rotators primarily in their size, roller configuration, and load range. Pipe rotators use plummer-block-mounted rollers with a fixed diameter setting matched to the pipe range, whereas larger self-aligning rotators use adjustable roller frames that accommodate a wide diameter range on the same machine. Pipe rotators are the correct choice for dedicated pipe spool fabrication lines where the pipe size is consistent and setup speed matters more than diameter flexibility.
Cu-Built’s pipe welding rotators are built with PU rollers for surface protection, AC VFD drives for precise speed control, and a 2+1 stage gear reduction for reliable high-torque starting. They are used in pipeline fabrication, petrochemical plant construction, shipbuilding, power plant piping, and general engineering. For larger-diameter work, explore the full welding rotator range, or pair any rotator with a welding column and boom for a complete automated circumferential welding cell.
