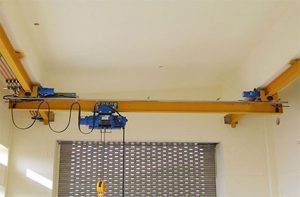

Single Girder Underslung Crane
The Single Girder Underslung Crane is the perfect solution where supporting steelwork beneath the crane is not possible. Instead of resting on floor-based structures, it is supported directly from the roof structure, ensuring optimal use of space while minimizing the load on the building framework.
These cranes operate as Overhead Traveling Cranes, supported for their long-travel motion on the bottom flanges of the LT runway beam. Designed and manufactured as per IS 3177 & IS 807 standards, they guarantee safety, durability, and efficiency in handling light to medium loads.
Key Benefits of Single Girder Underslung Cranes
- Space-Saving Design – Ideal for facilities with low headroom or restricted installation space.
- Efficient Long-Travel Motion – Smooth operations along the LT runway beam.
- Light to Medium Load Handling – Cost-effective and practical for smaller capacity requirements.
- Standards Compliance – Manufactured in accordance with IS 3177 & IS 807.
Applications of Single Girder Underslung Cranes
Single Girder Underslung Cranes are widely used in warehouses, workshops, assembly lines, and light fabrication units, where floor space is limited and compact lifting solutions are required. They are particularly effective in low room height facilities, offering safe and efficient load transportation.
Designed for Efficient Material Handling
Cubuilt Single Girder Underslung Cranes are engineered to optimize workspace utilization while maintaining reliable lifting performance. Their suspended design reduces the need for additional support structures and allows smooth operation in areas with restricted headroom. These cranes can be customized based on span, lifting height, and load requirements to suit specific industrial applications.
For facilities requiring higher lifting capacities, consider Single Girder EOT Cranes, while larger production units with increased load demands may benefit from Double Girder Underslung Cranes. This allows businesses to select the most suitable lifting solution based on operational requirements and available infrastructure.
Related Product
Questions Asked For Single Girder Underslung Crane
What is a single girder underslung crane?
It is a crane suspended from the roof structure instead of being supported from the floor. It has a single main girder, and it is the most common configuration for underslung cranes.
When should I choose one?
Choose it for areas with limited headroom, or for facilities where supporting a crane from the floor isn’t feasible. It suits workshops, warehouses, assembly lines, and material handling bays where space is tight.
What are the main advantages?
It has low dead weight, which reduces the load on the building structure. It also makes the most of installation height and workspace, gives narrow hook approaches for confined spaces, and saves on infrastructure cost by using the existing roof support.
What kind of duty is it suited for?
It is highly effective for light to medium-duty operations, with smooth and safe load transportation and minimal structural requirements.
What if I need to lift heavier loads?
Double girder underslung cranes are available for higher capacity requirements.
